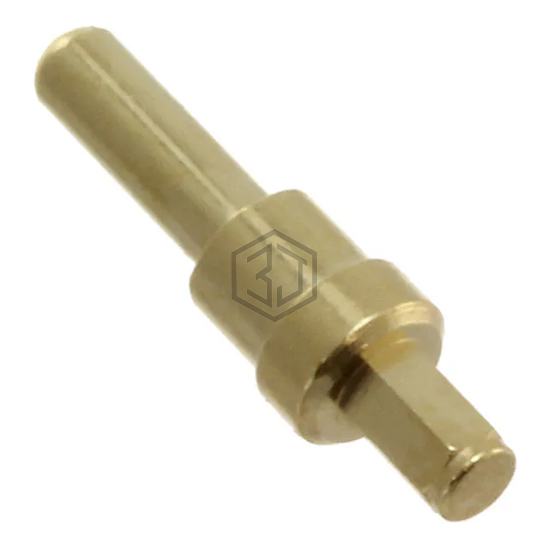

CONN PC PIN 0.062DIA GOLD
6035-0-00-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN 0.062DIA GOLD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit.
In Stock: 1,357
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Flanged, Pin Retention |
| Pin Size - Above Flange | 0.062" (1.57mm) Dia |
| Pin Size - Below Flange | 0.067" (1.70mm) Hex |
| Length - Above Flange | 0.188" (4.78mm) |
| Length - Below Flange | 0.100" (2.54mm) |
| Length - Overall | 0.419" (10.64mm) |
| Flange Diameter | 0.113" (2.87mm) |
| Mounting Hole Diameter | 0.068" (1.73mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 6035-0-00-15-00-00-03-0 and get a quote within 24 hours.
