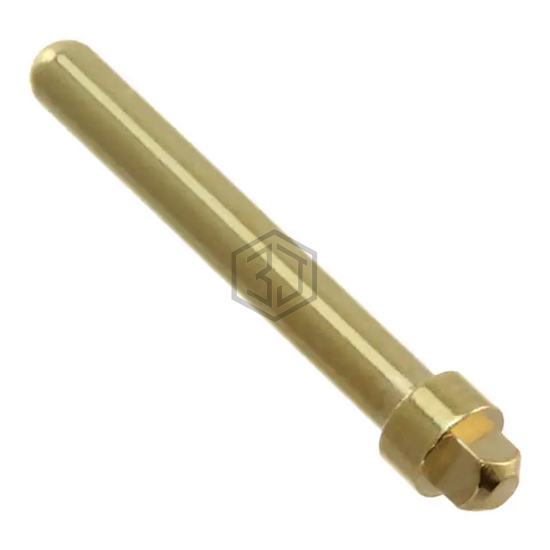

CONN PC PIN 0.080DIA GOLD
5920-0-00-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN 0.080DIA GOLD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit.
In Stock: 1,013
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Flanged |
| Pin Size - Above Flange | 0.080" (2.03mm) Dia |
| Pin Size - Below Flange | 0.085" (2.16mm) Dia |
| Length - Above Flange | 0.591" (15.01mm) |
| Length - Below Flange | 0.063" (1.60mm) |
| Length - Overall | 0.713" (18.10mm) |
| Flange Diameter | 0.118" (3.00mm) |
| Mounting Hole Diameter | 0.086" (2.18mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 5920-0-00-15-00-00-03-0 and get a quote within 24 hours.
