.375" VENTED PIN FOR PLATED THRO

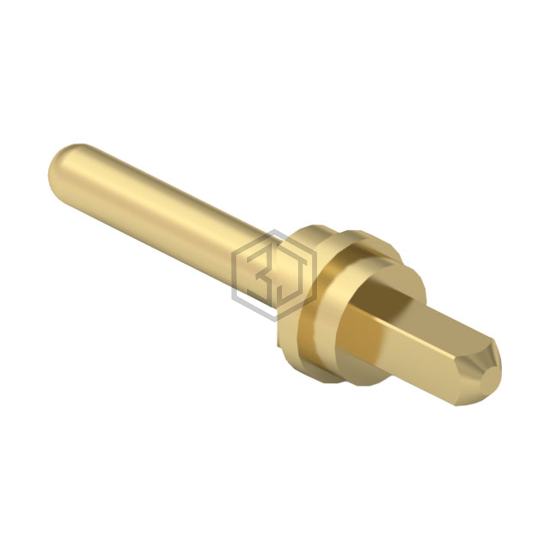

5459-0-00-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. .375" VENTED PIN FOR PLATED THRO. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit.
In Stock: 1,217
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Double End |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia |
| Pin Size - Below Flange | 0.050" (1.27mm) Dia |
| Length - Above Flange | 0.210" (5.33mm) |
| Length - Below Flange | 0.095" (2.41mm) |
| Length - Overall | 0.375" (9.53mm) |
| Flange Diameter | 0.096" (2.44mm) |
| Mounting Hole Diameter | 0.051" (1.30mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 5459-0-00-15-00-00-03-0 and get a quote within 24 hours.
