SOLDER TAIL SWAGE PIN

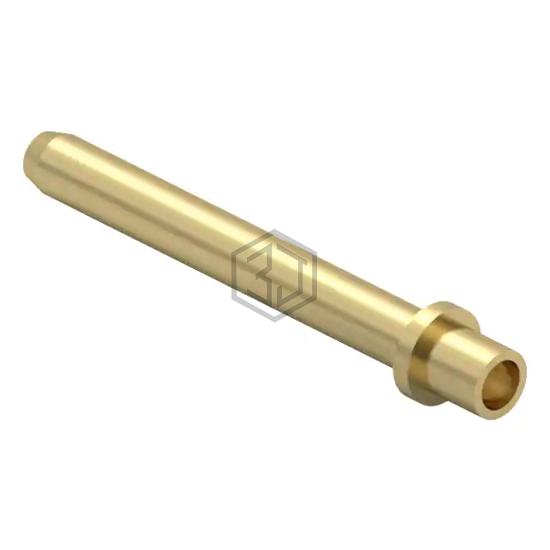

5233-0-00-15-00-00-08-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. SOLDER TAIL SWAGE PIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 928
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.079" (2.01mm) Dia |
| Pin Size - Below Flange | 0.089" (2.26mm) Dia |
| Length - Above Flange | 0.650" (16.51mm) |
| Length - Below Flange | 0.094" (2.39mm) |
| Length - Overall | 0.769" (19.53mm) |
| Flange Diameter | 0.124" (3.15mm) |
| Mounting Hole Diameter | 0.093" (2.36mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" (1.58mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 5233-0-00-15-00-00-08-0 and get a quote within 24 hours.
