PRESS-FIT PCB PIN

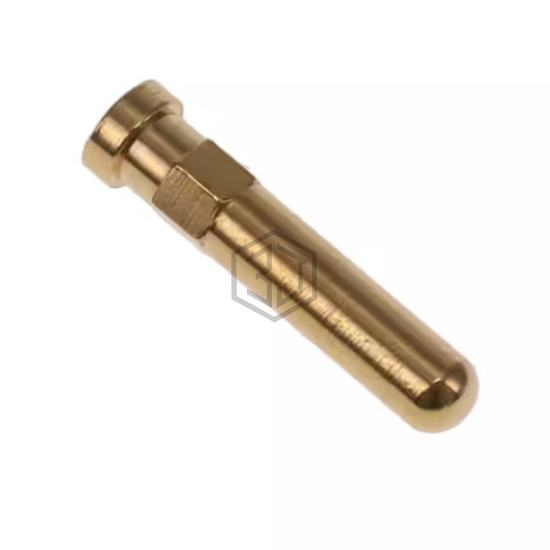

5140-0-00-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. PRESS-FIT PCB PIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit, Hex.
In Stock: 1,640
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.060" (1.52mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.218" (5.54mm) |
| Length - Below Flange | - |
| Length - Overall | 0.325" (8.26mm) |
| Flange Diameter | 0.077" (1.96mm) |
| Mounting Hole Diameter | 0.066" (1.68mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit, Hex |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 5140-0-00-15-00-00-03-0 and get a quote within 24 hours.
