SOLDER MOUNT PCB PIN

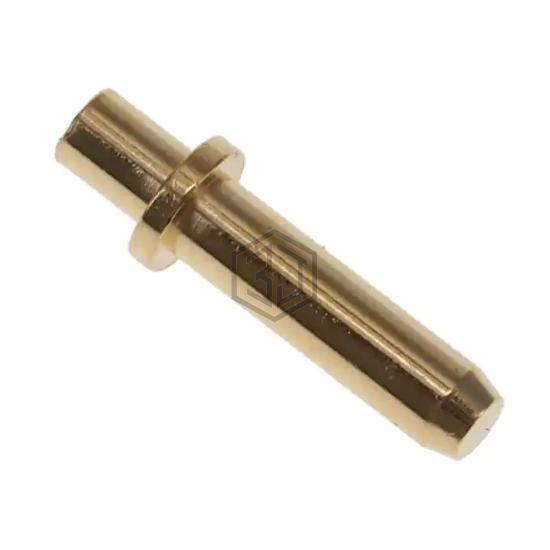

4914-0-00-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. SOLDER MOUNT PCB PIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Solder.
In Stock: 2,790
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.080" (2.03mm) Dia |
| Pin Size - Below Flange | 0.075" (1.91mm) Dia |
| Length - Above Flange | 0.300" (7.62mm) |
| Length - Below Flange | 0.100" (2.54mm) |
| Length - Overall | 0.425" (10.80mm) |
| Flange Diameter | 0.125" (3.18mm) |
| Mounting Hole Diameter | 0.084" (2.13mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 4914-0-00-15-00-00-03-0 and get a quote within 24 hours.
