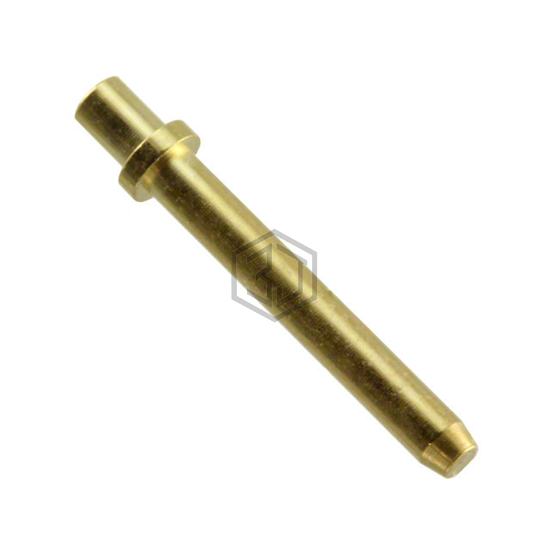

CONN PC PIN CIRC 0.060 DIA GOLD
4357-0-00-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC 0.060 DIA GOLD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Solder.
In Stock: 5,460
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.060" (1.52mm) Dia |
| Pin Size - Below Flange | 0.062" (1.58mm) Dia |
| Length - Above Flange | 0.440" (11.18mm) |
| Length - Below Flange | 0.084" (2.13mm) |
| Length - Overall | 0.549" (13.94mm) |
| Flange Diameter | 0.094" (2.39mm) |
| Mounting Hole Diameter | 0.064" (1.63mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 4357-0-00-15-00-00-03-0 and get a quote within 24 hours.
