CONN PC PIN CIRC 0.030DIA GOLD

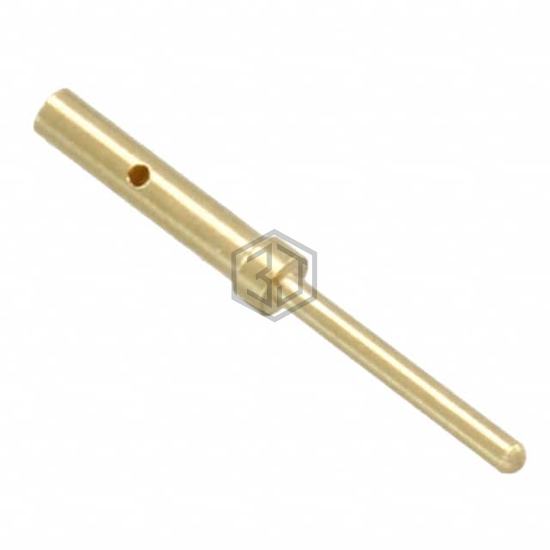

3922-0-01-15-00-00-08-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC 0.030DIA GOLD. Key specifications: mounting type Free Hanging (In-Line), contact material Brass Alloy, termination Crimp.
In Stock: 6,807
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Wire |
| Pin Size - Above Flange | 0.030" (0.76mm) Dia |
| Pin Size - Below Flange | 0.047" (1.19mm) Dia |
| Length - Above Flange | 0.267" (6.78mm) |
| Length - Below Flange | 0.234" (5.94mm) |
| Length - Overall | 0.532" (13.51mm) |
| Flange Diameter | 0.061" (1.55mm) |
| Mounting Hole Diameter | - |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Crimp |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 3922-0-01-15-00-00-08-0 and get a quote within 24 hours.
