INSULATED TERMINAL PIN

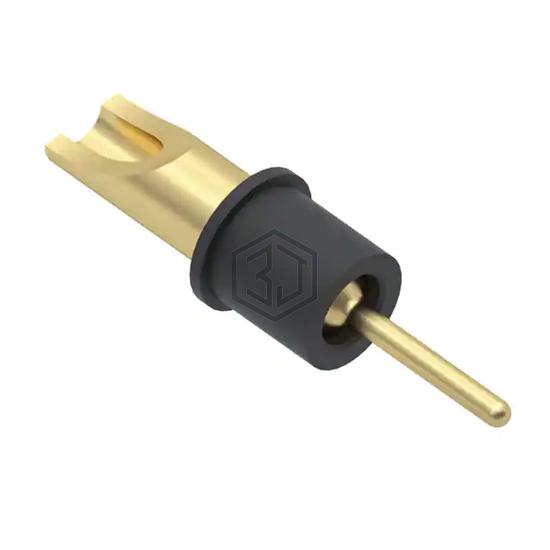

380-10-001-00-000800 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. INSULATED TERMINAL PIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Solder.
In Stock: 3,194
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.072" (1.83mm) Dia |
| Pin Size - Below Flange | 0.020" (0.51mm) Dia |
| Length - Above Flange | 0.158" (4.01mm) |
| Length - Below Flange | 0.153" (3.89mm) |
| Length - Overall | 0.417" (10.59mm) |
| Flange Diameter | 0.110" (2.79mm) |
| Mounting Hole Diameter | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Insulation | Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 380-10-001-00-000800 and get a quote within 24 hours.
