CONN SOCKET SIP 37POS GOLD

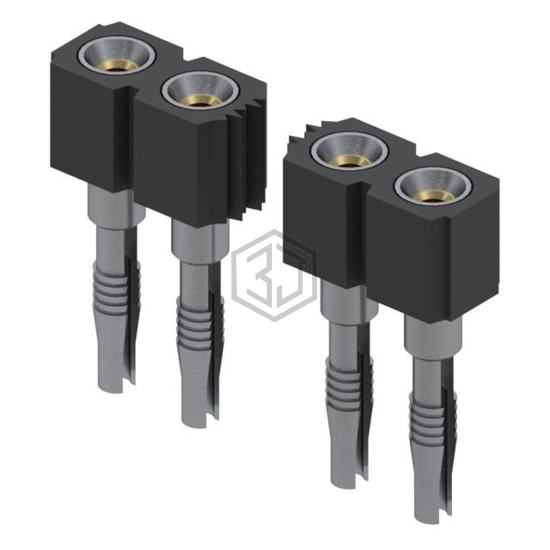

346-43-137-41-013000 is a Sockets for ICs, Transistors manufactured by Mill-Max Manufacturing Corp.. CONN SOCKET SIP 37POS GOLD. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, housing material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, termination Press-Fit.
In Stock: 7,274
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | SIP |
| Number of Positions or Pins (Grid) | 37 (1 x 37) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Through Hole |
| Features | - |
| Termination | Press-Fit |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Material - Post | Brass Alloy |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for 346-43-137-41-013000 and get a quote within 24 hours.
