CONN PC PIN CIRC 0.040DIA GOLD

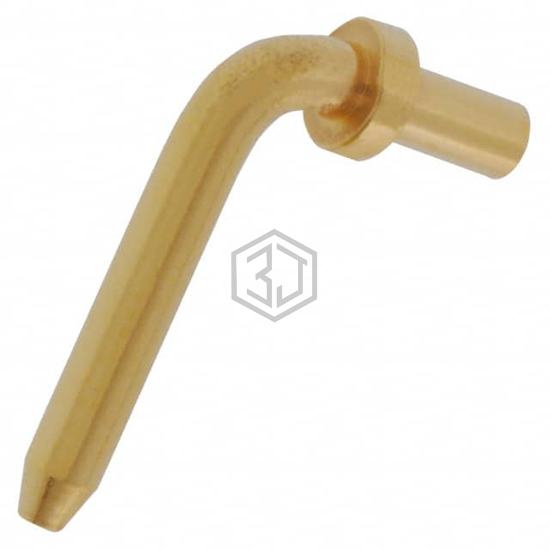

3301-2-14-21-00-00-08-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC 0.040DIA GOLD. Key specifications: mounting type Through Hole, Right Angle, contact material Brass Alloy, termination Swage.
In Stock: 8,234
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.040" (1.02mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | - |
| Length - Below Flange | 0.082" (2.08mm) |
| Length - Overall | - |
| Flange Diameter | 0.070" (1.77mm) |
| Mounting Hole Diameter | 0.043" (1.09mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 20.0µin (0.51µm) |
Submit your RFQ for 3301-2-14-21-00-00-08-0 and get a quote within 24 hours.
