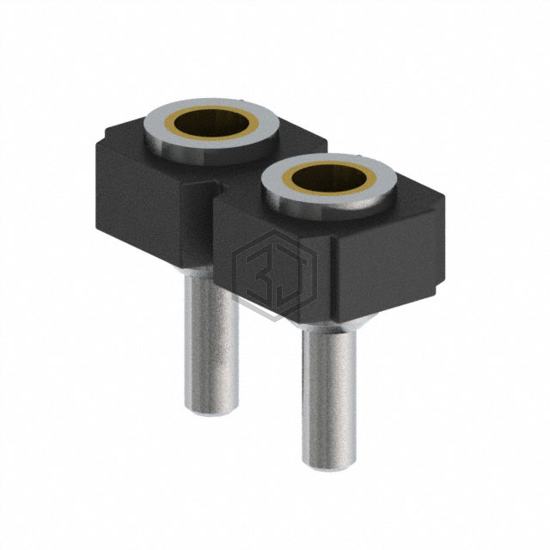

CONN SOCKET 2POS 0.1 GOLD PCB
315-47-102-41-004000 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Mill-Max Manufacturing Corp.. CONN SOCKET 2POS 0.1 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating 100V, 150VDC, current rating (amps) 3A.
In Stock: 80
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Socket |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 2 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.050" (1.27mm) |
| Contact Length - Post | 0.082" (2.08mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | - |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 100V, 150VDC |
Submit your RFQ for 315-47-102-41-004000 and get a quote within 24 hours.
