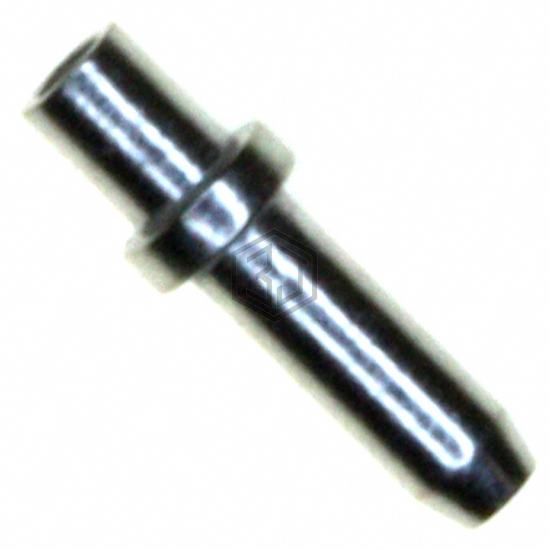

CONN PC PIN CIRC .062DIA TINLEAD
3144-2-00-01-00-00-08-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC .062DIA TINLEAD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 3,708
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.062" (1.57mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.188" (4.78mm) |
| Length - Below Flange | 0.084" (2.13mm) |
| Length - Overall | 0.297" (7.54mm) |
| Flange Diameter | 0.094" (2.39mm) |
| Mounting Hole Diameter | 0.067" (1.70mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200.0µin (5.08µm) |
Submit your RFQ for 3144-2-00-01-00-00-08-0 and get a quote within 24 hours.
