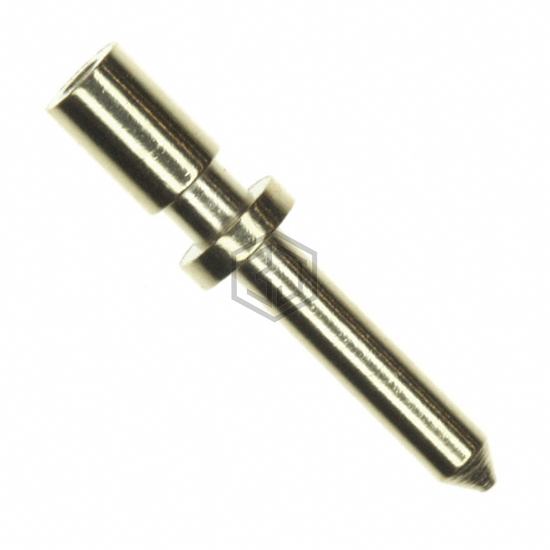

CONN PC PIN CIRC 0.049DIA GOLD
3139-0-00-21-00-00-08-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC 0.049DIA GOLD. Key specifications: mounting type Free Hanging (In-Line), contact material Brass Alloy, termination Crimp.
In Stock: 1,294
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Wire |
| Pin Size - Above Flange | 0.049" (1.24mm) Dia |
| Pin Size - Below Flange | 0.071" (1.80mm) Dia |
| Length - Above Flange | 0.249" (6.32mm) |
| Length - Below Flange | 0.156" (3.96mm) |
| Length - Overall | 0.430" (10.92mm) |
| Flange Diameter | 0.093" (2.36mm) |
| Mounting Hole Diameter | - |
| Mounting Type | Free Hanging (In-Line) |
| Termination | Crimp |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 20.0µin (0.51µm) |
Submit your RFQ for 3139-0-00-21-00-00-08-0 and get a quote within 24 hours.
