CONN PC PIN CIRC 0.020DIA GOLD

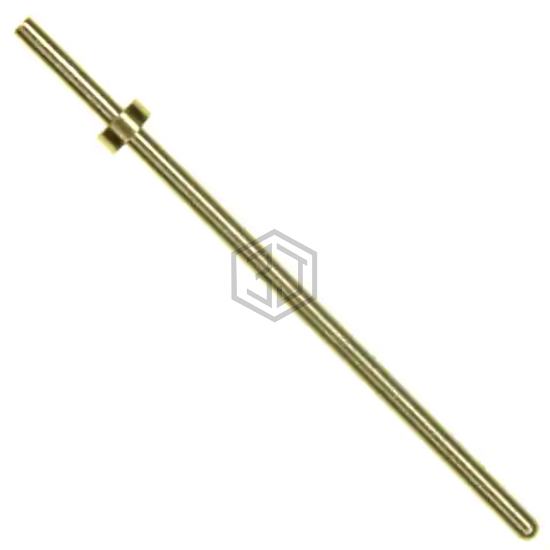

3128-2-00-15-00-00-08-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC 0.020DIA GOLD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Solder.
In Stock: 55,218
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End |
| Pin Size - Above Flange | 0.020" (0.51mm) Dia |
| Pin Size - Below Flange | 0.020" (0.51mm) Dia |
| Length - Above Flange | 0.425" (10.80mm) |
| Length - Below Flange | 0.100" (2.54mm) |
| Length - Overall | 0.545" (13.84mm) |
| Flange Diameter | 0.046" (1.17mm) |
| Mounting Hole Diameter | 0.024" (0.61mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
