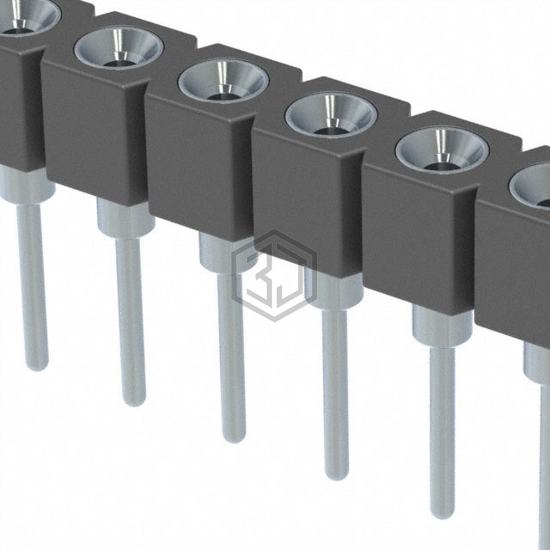

CONN RCPT 46POS 0.1 TIN-LEAD PCB
311-99-146-61-001000 is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Mill-Max Manufacturing Corp.. CONN RCPT 46POS 0.1 TIN-LEAD PCB. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage rating 100V, 150VDC, current rating (amps) 3A.
In Stock: 3,330
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 46 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Insulation Color | Black |
| Insulation Height | 0.110" (2.79mm) |
| Contact Length - Post | 0.170" (4.32mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin-Lead |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 100V, 150VDC |
Submit your RFQ for 311-99-146-61-001000 and get a quote within 24 hours.
