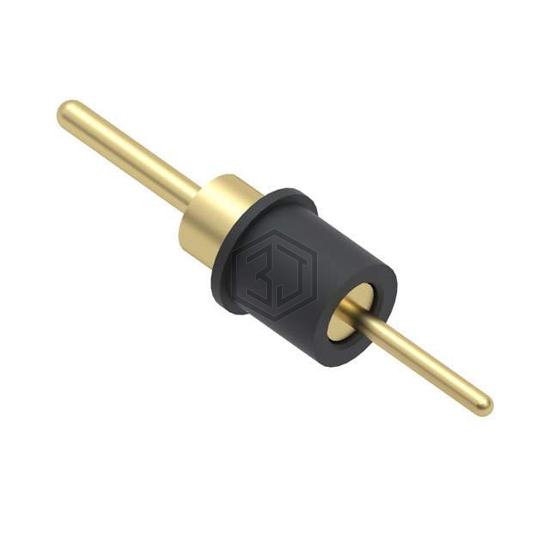

INSULATED TERMINAL PIN
302-10-001-00-900800 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. INSULATED TERMINAL PIN. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Press-Fit.
In Stock: 1,813
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Double End |
| Pin Size - Above Flange | 0.025" (0.64mm) Dia |
| Pin Size - Below Flange | 0.018" (0.46mm) Dia |
| Length - Above Flange | 0.166" (4.22mm) |
| Length - Below Flange | 0.153" (3.89mm) |
| Length - Overall | 0.477" (12.12mm) |
| Flange Diameter | 0.110" (2.79mm) |
| Mounting Hole Diameter | - |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Insulation | Insulated |
| Board Thickness | - |
| Contact Material | Brass Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 302-10-001-00-900800 and get a quote within 24 hours.
