CONN PC PIN CIRC .141DIA TINLEAD

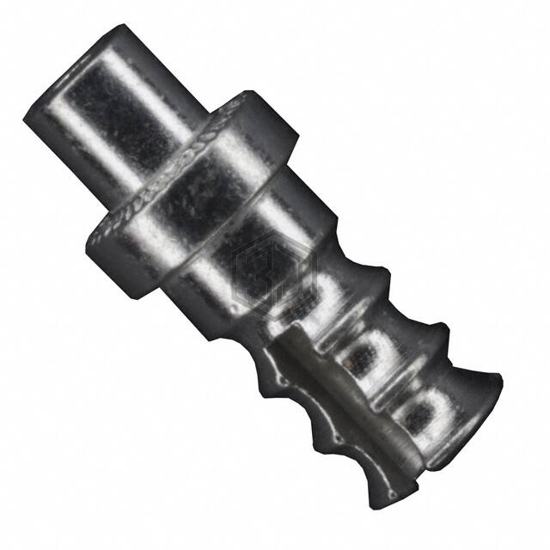

2808-2-01-01-00-00-07-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC .141DIA TINLEAD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage, Knurled.
In Stock: 4,796
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End, Slotted |
| Pin Size - Above Flange | 0.141" (3.58mm) Dia |
| Pin Size - Below Flange | 0.112" (2.84mm) Dia |
| Length - Above Flange | 0.266" (6.76mm) |
| Length - Below Flange | 0.105" (2.67mm) |
| Length - Overall | 0.433" (11.00mm) |
| Flange Diameter | 0.188" (4.78mm) |
| Mounting Hole Diameter | 0.116" (2.95mm) |
| Mounting Type | Through Hole |
| Termination | Swage, Knurled |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200.0µin (5.08µm) |
Submit your RFQ for 2808-2-01-01-00-00-07-0 and get a quote within 24 hours.
