CONN PC PIN CIRC .094DIA TINLEAD

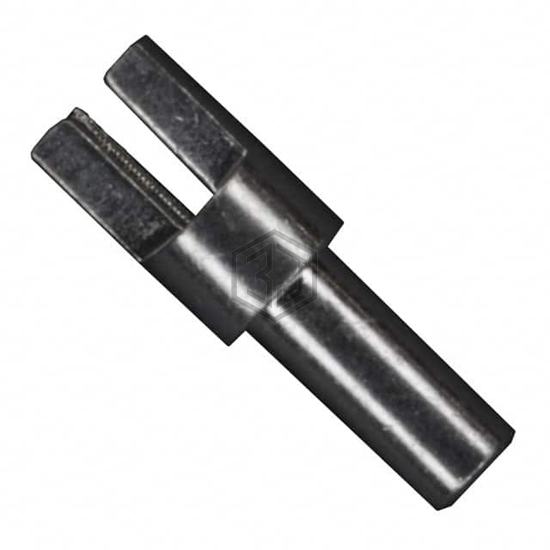

2302-4-01-01-00-00-07-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC .094DIA TINLEAD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 2,403
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End, Slotted |
| Pin Size - Above Flange | 0.094" (2.39mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.156" (3.96mm) |
| Length - Below Flange | 0.147" (3.73mm) |
| Length - Overall | 0.303" (7.70mm) |
| Flange Diameter | 0.094" (2.39mm) |
| Mounting Hole Diameter | 0.067" (1.70mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.125" (3.18mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200.0µin (5.08µm) |
Submit your RFQ for 2302-4-01-01-00-00-07-0 and get a quote within 24 hours.
