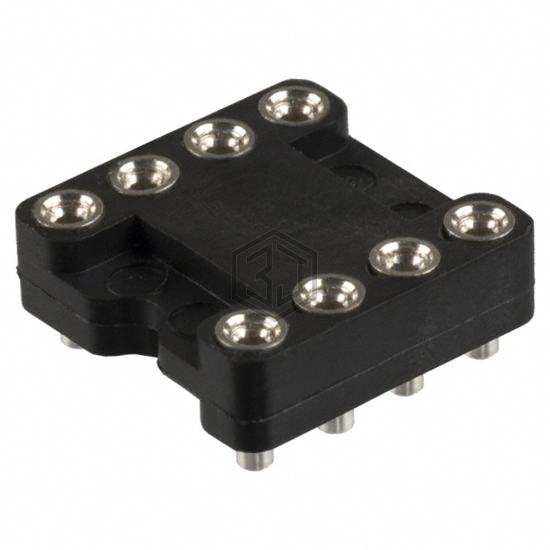

CONN IC DIP SOCKET 8POS TIN-LEAD
214-99-308-01-670800 is a Sockets for ICs, Transistors manufactured by Mill-Max Manufacturing Corp.. CONN IC DIP SOCKET 8POS TIN-LEAD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, housing material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, termination Solder.
In Stock: 493
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions or Pins (Grid) | 8 (2 x 4) |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Tin-Lead |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Material - Mating | Beryllium Copper |
| Mounting Type | Surface Mount |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - Post | 0.100" (2.54mm) |
| Contact Finish - Post | Tin-Lead |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Material - Post | Brass Alloy |
| Housing Material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Operating Temperature | -55°C ~ 125°C |
Submit your RFQ for 214-99-308-01-670800 and get a quote within 24 hours.
