CONN PC PIN CIRC .047DIA TINLEAD

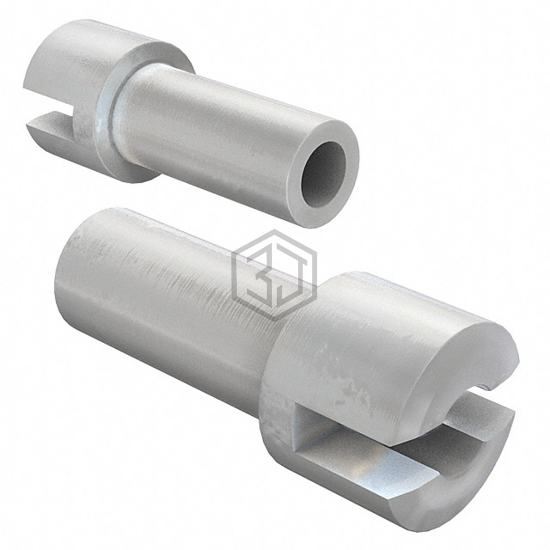

2104-4-01-01-00-00-07-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC .047DIA TINLEAD. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 4,545
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End, Slotted |
| Pin Size - Above Flange | 0.047" (1.19mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.070" (1.78mm) |
| Length - Below Flange | 0.148" (3.76mm) |
| Length - Overall | 0.218" (5.54mm) |
| Flange Diameter | 0.047" (1.19mm) |
| Mounting Hole Diameter | 0.036" (0.91mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.125" (3.18mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200.0µin (5.08µm) |
Submit your RFQ for 2104-4-01-01-00-00-07-0 and get a quote within 24 hours.
