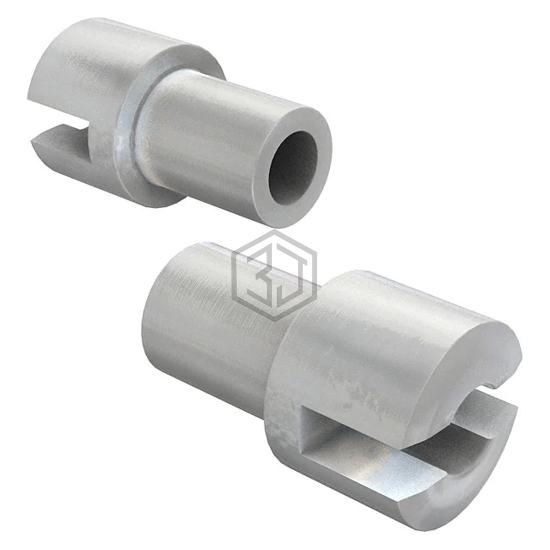

CONN PC PIN CIRC 0.047DIA SILVER
2104-2-01-44-00-00-07-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC 0.047DIA SILVER. Key specifications: mounting type Through Hole, contact material Brass Alloy, termination Swage.
In Stock: 933
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Single End, Slotted |
| Pin Size - Above Flange | 0.047" (1.19mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.070" (1.78mm) |
| Length - Below Flange | 0.086" (2.18mm) |
| Length - Overall | 0.156" (3.96mm) |
| Flange Diameter | 0.047" (1.19mm) |
| Mounting Hole Diameter | 0.036" (0.91mm) |
| Mounting Type | Through Hole |
| Termination | Swage |
| Insulation | Non-Insulated |
| Board Thickness | 0.062" (1.57mm) |
| Contact Material | Brass Alloy |
| Contact Finish | Silver |
| Contact Finish Thickness | 300.0µin (7.62µm) |
Submit your RFQ for 2104-2-01-44-00-00-07-0 and get a quote within 24 hours.
