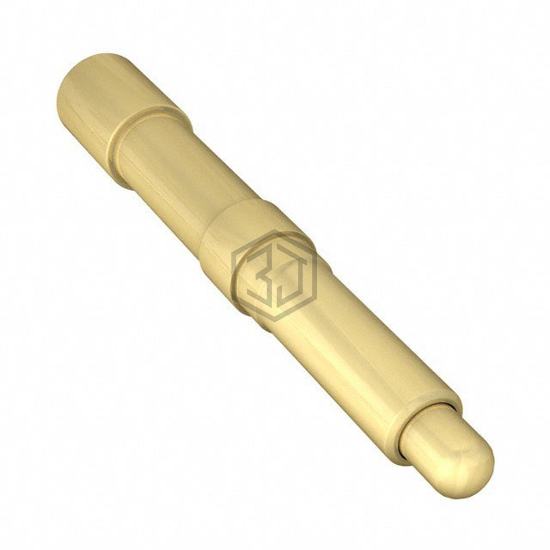

CONTACT SPRING LOADED IN-LINE
0959-0-54-20-75-14-11-0 is a Contacts, Spring Loaded (Pogo Pins), and Pressure manufactured by Mill-Max Manufacturing Corp.. CONTACT SPRING LOADED IN-LINE. Key specifications: mounting type Free Hanging (In-Line), contact material Copper Alloy.
In Stock: 1,020
| Attribute | Value |
|---|---|
| Product Status | Active |
| Contact Type | Sleeve & Plunger (Pogo Pins), Receptacle Adapter |
| Mounting Type | Free Hanging (In-Line) |
| Maximum Working Height | 0.273" (6.93mm) |
| Recommended Working Height | 0.245" (6.23mm) |
| Minimum Working Height | 0.228" (5.79mm) |
| Pad Layout Dimension | Circular - 0.100" (2.54mm) |
| Operating Force - Initial | 25gf |
| Operating Force - Mid Compression | 60gf |
| Plunger Size | 0.042" (1.07mm) Dia |
| Features | 0.020" ~ 0.032" (0.51mm ~ 0.81mm) Dia Pins |
| Mating Cycles | 1000000 |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Contact Finish Thickness | 20.0µin (0.51µm) |
Submit your RFQ for 0959-0-54-20-75-14-11-0 and get a quote within 24 hours.
