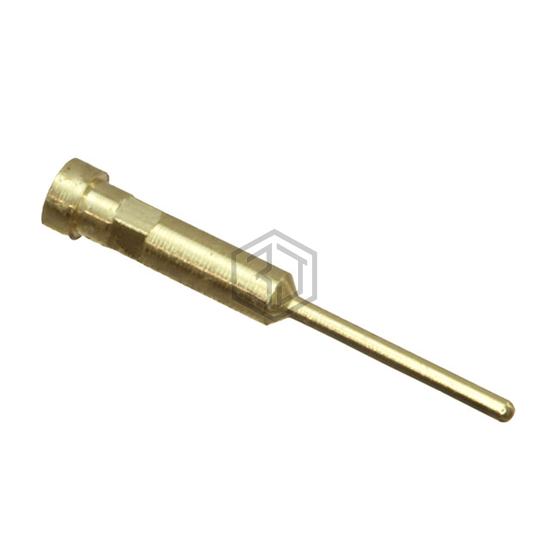

0335-0-15-15-47-27-04-0 - Mill-Max Manufacturing Corp. - Terminals - PC Pin Receptacles, Socket Connectors

0335-0-15-15-47-27-04-0

Mill-Max Manufacturing Corp.

CONN PIN RCPT .025-.037 HEX

0335-0-15-15-47-27-04-0 is a Terminals - PC Pin Receptacles, Socket Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PIN RCPT .025-.037 HEX. Key specifications: contact material Beryllium Copper, termination Press-Fit, Hex.

In Stock: 1,000

Product Attributes

AttributeValue
Product StatusActive
Tail TypeStandard Tail
TerminationPress-Fit, Hex
Length - Overall0.544" (13.82mm)
Accepts Pin Diameter0.025" ~ 0.037" (0.64mm ~ 0.94mm)
Accepts Square Pin Size0.025" (0.64mm)
Pin Hole Diameter0.051" (1.30mm)
Mounting Hole Diameter0.064" (1.63mm)
Flange Diameter0.080" (2.03mm)
Tail Diameter0.025" (0.64mm)
Socket Depth0.234" (5.94mm)
Contact MaterialBeryllium Copper
Contact FinishGold
Contact Finish Thickness30.0µin (0.76µm)

Frequently Asked Questions

0335-0-15-15-47-27-04-0 is a Terminals - PC Pin Receptacles, Socket Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PIN RCPT .025-.037 HEX

The material of 0335-0-15-15-47-27-04-0 is Beryllium Copper.

The termination type of 0335-0-15-15-47-27-04-0 is Press-Fit, Hex.
