CONN PIN RCPT .022-.032 SOLDER

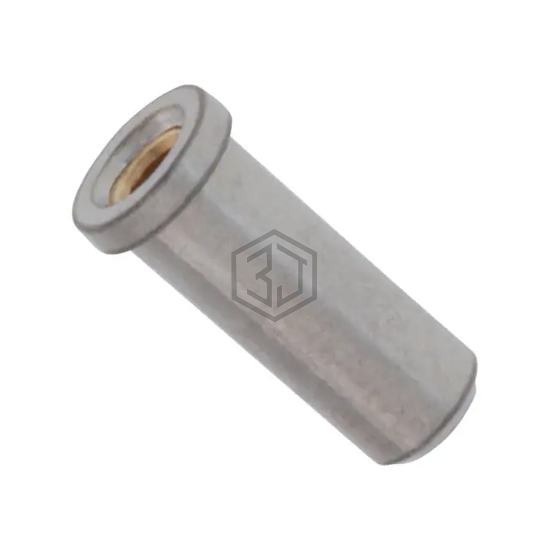

0294-0-15-01-06-27-10-0 is a Terminals - PC Pin Receptacles, Socket Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PIN RCPT .022-.032 SOLDER. Key specifications: contact material Beryllium Copper, termination Solder.
In Stock: 151,263
| Attribute | Value |
|---|---|
| Product Status | Active |
| Tail Type | No Tail |
| Termination | Solder |
| Length - Overall | 0.206" (5.23mm) |
| Accepts Pin Diameter | 0.022" ~ 0.032" (0.56mm ~ 0.81mm) |
| Accepts Square Pin Size | - |
| Pin Hole Diameter | 0.051" (1.30mm) |
| Mounting Hole Diameter | 0.076" (1.93mm) |
| Flange Diameter | 0.090" (2.29mm) |
| Tail Diameter | - |
| Socket Depth | 0.185" (4.70mm) |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
Submit your RFQ for 0294-0-15-01-06-27-10-0 and get a quote within 24 hours.
