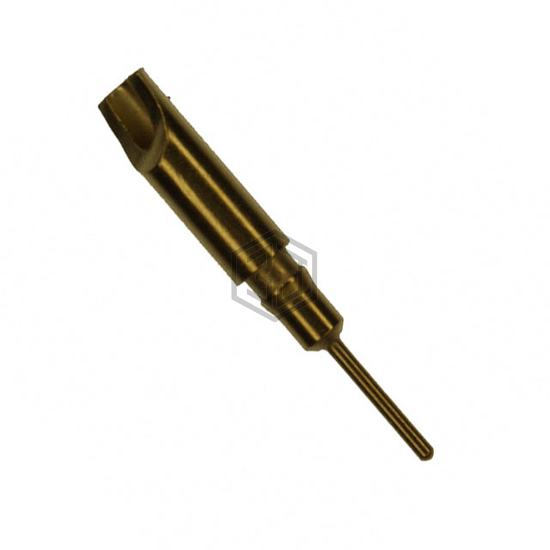

CONN PC PIN CIRC 0.020DIA GOLD
0275-0-01-15-00-00-03-0 is a Terminals - PC Pin, Single Post Connectors manufactured by Mill-Max Manufacturing Corp.. CONN PC PIN CIRC 0.020DIA GOLD. Key specifications: mounting type Through Hole, contact material Phosphor Bronze, termination Press-Fit.
In Stock: 625
| Attribute | Value |
|---|---|
| Product Status | Active |
| Terminal Type | PC Pin |
| Terminal Style | Wire |
| Pin Size - Above Flange | 0.020" (0.51mm) Dia |
| Pin Size - Below Flange | - |
| Length - Above Flange | 0.259" (6.58mm) |
| Length - Below Flange | - |
| Length - Overall | 0.491" (12.47mm) |
| Flange Diameter | 0.072" (1.83mm) |
| Mounting Hole Diameter | 0.057" (1.45mm) |
| Mounting Type | Through Hole |
| Termination | Press-Fit |
| Insulation | Non-Insulated |
| Board Thickness | - |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) |
Submit your RFQ for 0275-0-01-15-00-00-03-0 and get a quote within 24 hours.
