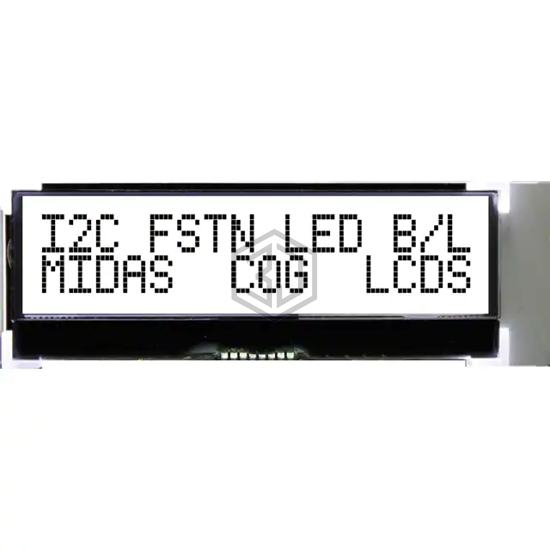

2X16 CHARACTER CHIP-ON-GLASS LCD
MCCOG21605B6W-FPTLWI is a Display Modules - LCD, OLED Character and Numeric manufactured by Midas Displays. 2X16 CHARACTER CHIP-ON-GLASS LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 3V ~ 5V, interface I²C, display type FSTN - Film Super-Twisted Nematic.
In Stock: 514
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 1 |
| Display Format | 2 x 16 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 3.79mm H x 2.00mm W |
| Outline L x W x H | 51.20mm x 20.70mm x 6.30mm |
| Viewing Area | 40.00mm L x 10.00mm W |
| Backlight | LED - White |
| Voltage - Supply | 3V ~ 5V |
| Dot Size | 0.36mm W x 0.43mm H |
| Interface | I²C |
| Controller Type | ST7032I |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | White |
Submit your RFQ for MCCOG21605B6W-FPTLWI and get a quote within 24 hours.
