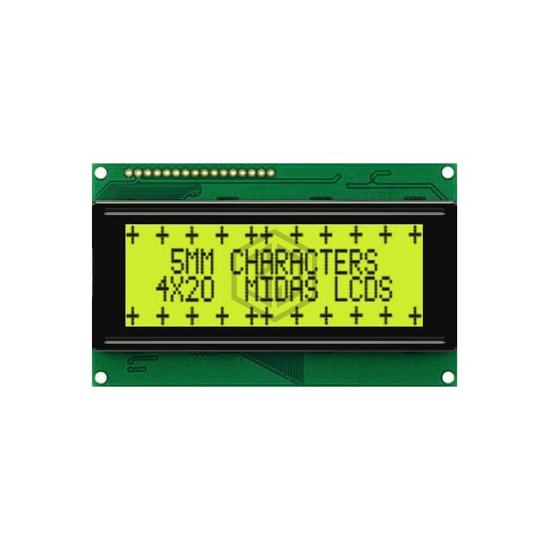

4X20 CHARACTER CHIP-ON-BOARD LCD
MC42005A6W-SPTLY-V2 is a Display Modules - LCD, OLED Character and Numeric manufactured by Midas Displays. 4X20 CHARACTER CHIP-ON-BOARD LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 306
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 1 |
| Display Format | 4 x 20 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.75mm H x 2.95mm W |
| Outline L x W x H | 98.00mm x 60.00mm x 14.00mm |
| Viewing Area | 76.00mm L x 26.00mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 5V |
| Dot Size | 0.55mm W x 0.55mm H |
| Interface | Parallel |
| Controller Type | ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | Yellow/Green |
Submit your RFQ for MC42005A6W-SPTLY-V2 and get a quote within 24 hours.
