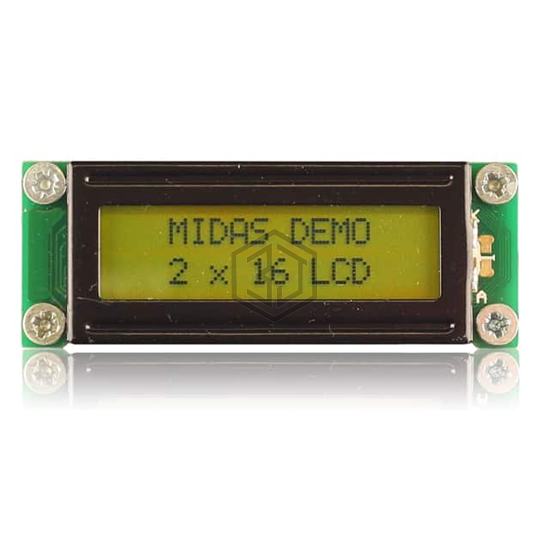

2X16 CHARACTER CHIP-ON-BOARD LCD
MC21603A6W-SPTLY-V2 is a Display Modules - LCD, OLED Character and Numeric manufactured by Midas Displays. 2X16 CHARACTER CHIP-ON-BOARD LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 696
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 3.15mm H x 1.85mm W |
| Outline L x W x H | 53.00mm x 20.00mm x 8.00mm |
| Viewing Area | 36.00mm L x 10.00mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 5V |
| Dot Size | 0.33mm W x 0.35mm H |
| Interface | Parallel |
| Controller Type | ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | Yellow/Green |
Submit your RFQ for MC21603A6W-SPTLY-V2 and get a quote within 24 hours.
