IC PWM CONTROLLER

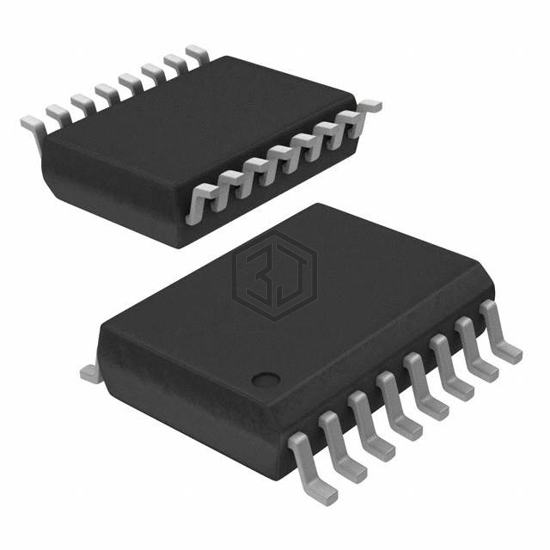

NX2305CSTR is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microsemi Corporation. IC PWM CONTROLLER. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply (vcc/vdd) 8.2V ~ 14V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 4,323
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Type | PWM |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8.2V ~ 14V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 94% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable, Power Good, Soft Start |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
NX2305CSTR is Obsolete. Consider these compatible alternatives:
