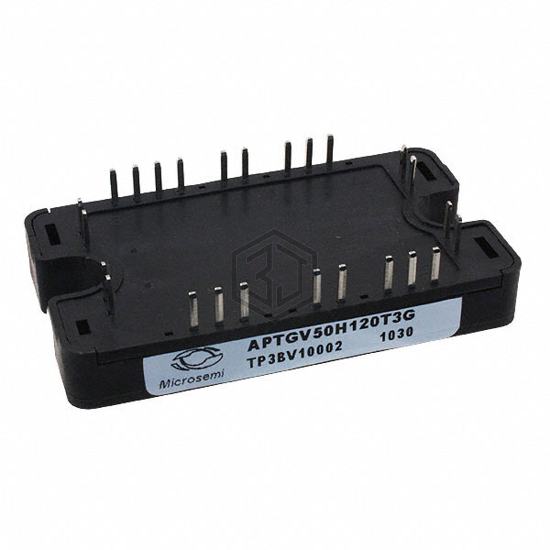

IGBT MODULE 1200V 75A 270W SP3
APTGV50H120T3G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 75A 270W SP3. Key specifications: mounting type Chassis Mount, package / case SP3, current - collector (ic) (max) 75 A, power - max 270 W.
In Stock: 8,780
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | NPT, Trench Field Stop |
| Configuration | Full Bridge Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 75 A |
| Power - Max | 270 W |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 50A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 3.6 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Package / Case | SP3 |
| Supplier Device Package | SP3 |
Submit your RFQ for APTGV50H120T3G and get a quote within 24 hours.
