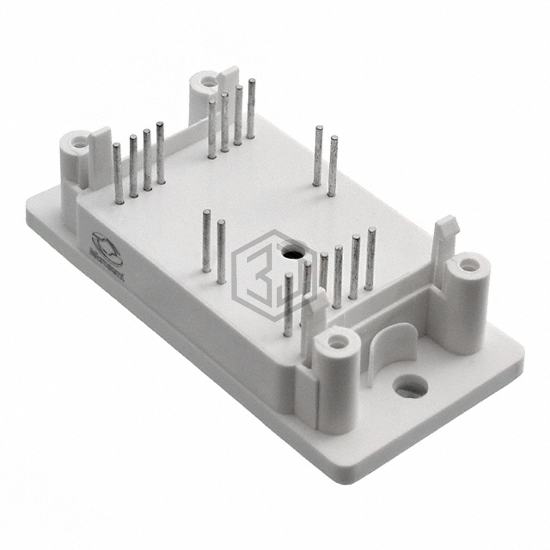

IGBT MODULE 1200V 220A 750W SP2
APTGL180A1202G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 220A 750W SP2. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 175°C (TJ), package / case SP2, current - collector (ic) (max) 220 A.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 220 A |
| Power - Max | 750 W |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 150A |
| Current - Collector Cutoff (Max) | 300 µA |
| Input Capacitance (Cies) @ Vce | 9.3 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | SP2 |
| Supplier Device Package | SP2 |
Submit your RFQ for APTGL180A1202G and get a quote within 24 hours.
