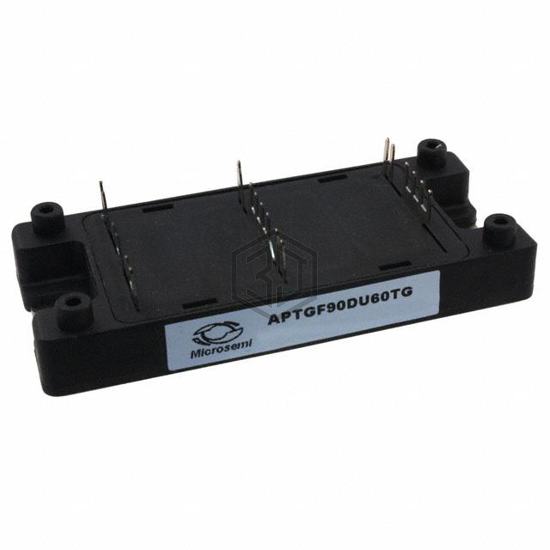

IGBT MODULE 600V 110A 416W SP4
APTGF90DU60TG is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 600V 110A 416W SP4. Key specifications: mounting type Chassis Mount, package / case SP4, current - collector (ic) (max) 110 A, power - max 416 W.
In Stock: 8,757
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | NPT |
| Configuration | Dual, Common Source |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 110 A |
| Power - Max | 416 W |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 90A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 4.3 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Package / Case | SP4 |
| Supplier Device Package | SP4 |
Submit your RFQ for APTGF90DU60TG and get a quote within 24 hours.
