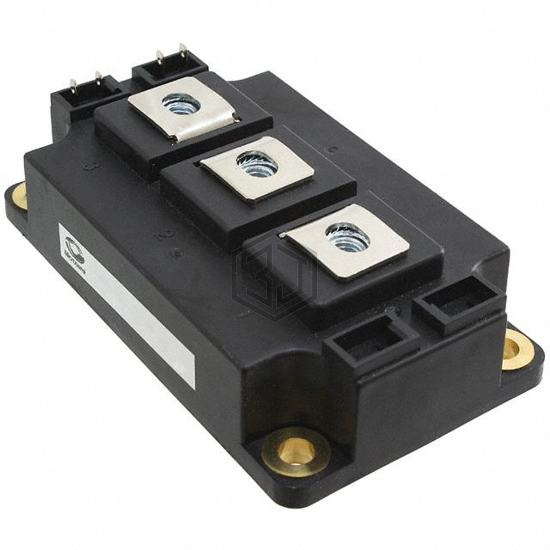

IGBT MODULE 1200V 420A 2100W D3
APTGF300A120D3G is a Transistors - IGBTs - Modules manufactured by Microsemi Corporation. IGBT MODULE 1200V 420A 2100W D3. Key specifications: mounting type Chassis Mount, package / case D-3 Module, current - collector (ic) (max) 420 A, power - max 2100 W.
In Stock: 9,639
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | NPT |
| Configuration | Half Bridge |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 420 A |
| Power - Max | 2100 W |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 300A |
| Current - Collector Cutoff (Max) | 5 mA |
| Input Capacitance (Cies) @ Vce | 19 nF @ 25 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | - |
| Mounting Type | Chassis Mount |
| Package / Case | D-3 Module |
| Supplier Device Package | D3 |
Submit your RFQ for APTGF300A120D3G and get a quote within 24 hours.
