MOSFET P-CH 60V 120MA TO236AB

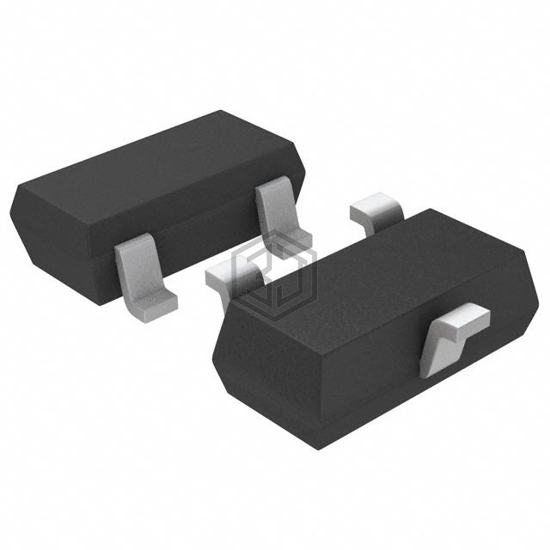

TP0610T-G is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET P-CH 60V 120MA TO236AB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-236-3, SC-59, SOT-23-3.
In Stock: 2,869
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 120mA (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 10Ohm @ 200mA, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 60 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 360mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-236AB (SOT23) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
Submit your RFQ for TP0610T-G and get a quote within 24 hours.
