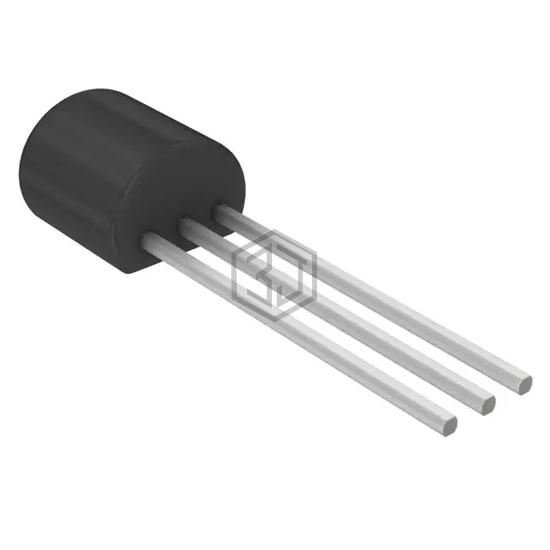

MOSFET N-CH 20V 530MA TO92-3
TN0702N3-G is a Transistors - FETs, MOSFETs - Single manufactured by Microchip Technology. MOSFET N-CH 20V 530MA TO92-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA).
In Stock: 2,322
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 530mA (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 2V, 5V |
| Rds On (Max) @ Id, Vgs | 1.3Ohm @ 500mA, 5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 200 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-92-3 |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
Submit your RFQ for TN0702N3-G and get a quote within 24 hours.
