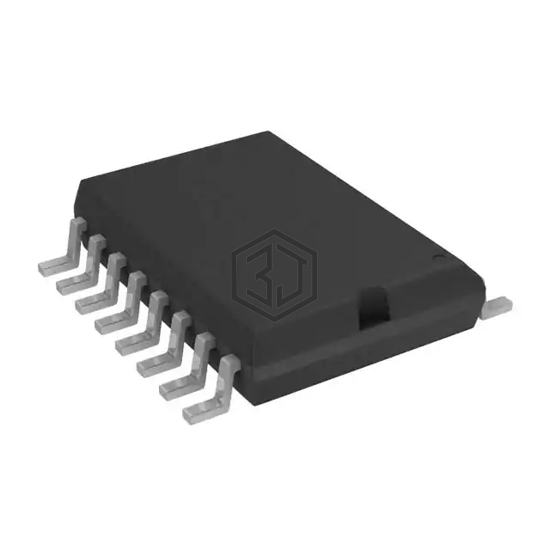

IC GATE DRVR HI/LOW SIDE 16SOIC
TC4627EOE713 is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 4V ~ 6V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 7,843
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4V ~ 6V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 33ns, 27ns |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4627EOE | Microchip Technology | IC GATE DRVR HI/LOW SIDE 16SOIC | 100% | View |
| IR2125STRPBF | Infineon Technologies | IC GATE DRVR HIGH-SIDE 16SOIC | 95% | View |
| IR2125SPBF | Infineon Technologies | IC GATE DRVR HIGH-SIDE 16SOIC | 95% | View |
| TC4432EOA713 | Microchip Technology | IC GATE DRVR HI/LOW SIDE 8SOIC | 95% | View |
| DGD0216WT-7 | Diodes Incorporated | IC GATE DRVR LOW-SIDE TSOT25 | 86% | View |
| DGD0215WT-7 | Diodes Incorporated | IC GATE DRVR LOW-SIDE TSOT25 | 86% | View |
Submit your RFQ for TC4627EOE713 and get a quote within 24 hours.
