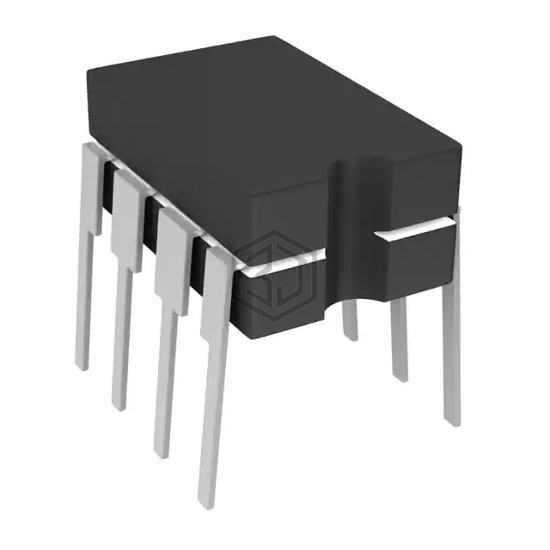

IC GATE DRVR HI/LOW SIDE 8CERDIP
TC4431EJA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR HI/LOW SIDE 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 30V, package / case 8-CDIP (0.300", 7.62mm).
In Stock: 6,410
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | High-Side or Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 30V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 25ns, 33ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
TC4431EJA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4432EPA | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 100% | View |
| TC4432VPA | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 100% | View |
| TC4431VPA | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 100% | View |
| TC4431EPA | Microchip Technology | IC GATE DRV HI-SIDE/LO-SIDE 8DIP | 100% | View |
| IR2125PBF | Infineon Technologies | IC GATE DRVR HIGH-SIDE 8DIP | 91% | View |
| MC33153PG | onsemi | IC GATE DRVR LOW-SIDE 8DIP | 74% | View |
Submit your RFQ for TC4431EJA and get a quote within 24 hours.
