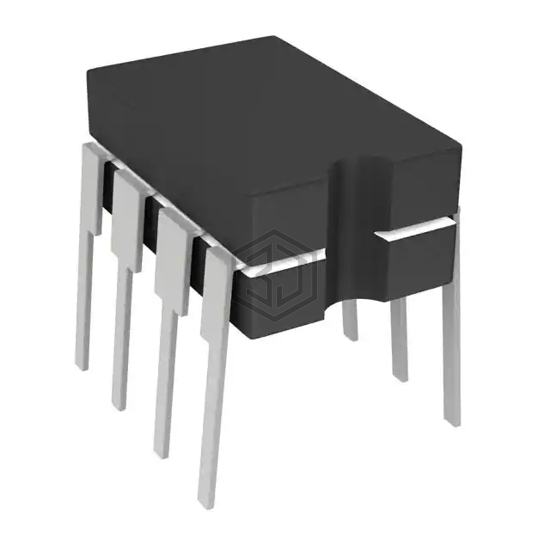

IC GATE DRVR LOW-SIDE 8CERDIP
TC4429MJA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 8-CDIP (0.300", 7.62mm).
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 6A, 6A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 25ns, 25ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4420MJA | Microchip Technology | IC GATE DRVR LOW-SIDE 8CERDIP | 100% | View |
| IXDI609CI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE TO220-5 | 93% | View |
| UC2710N | Unitrode | UC2710 COMPLEMENTARY HIGH CURREN | 84% | View |
| UC3710T | Texas Instruments | IC GATE DRVR LOW-SIDE TO220-5 | 84% | View |
| UC3710N | Texas Instruments | IC GATE DRVR LOW-SIDE 8DIP | 84% | View |
| UC3710TG3 | Texas Instruments | IC GATE DRVR LOW-SIDE TO220-5 | 84% | View |
Submit your RFQ for TC4429MJA and get a quote within 24 hours.
