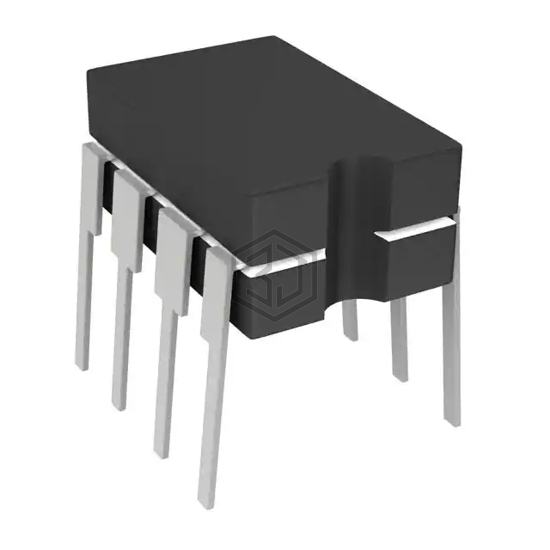

IC GATE DRVR LOW-SIDE 8CERDIP
TC4428MJA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-CDIP (0.300", 7.62mm).
In Stock: 3,743
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 1.5A, 1.5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 19ns, 19ns |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
TC4428MJA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4426MJA | Microchip Technology | IC GATE DRVR LOW-SIDE 8CERDIP | 100% | View |
| TC4427MJA | Microchip Technology | IC GATE DRVR LOW-SIDE 8CERDIP | 100% | View |
| MAX4428MJA/883B | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8CERDIP | 99% | View |
| MAX4427MJA/883B | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8CERDIP | 99% | View |
| MAX4426MJA/883B | Analog Devices Inc./Maxim Integrated | IC GATE DRVR LOW-SIDE 8CERDIP | 99% | View |
| UC3709N | Texas Instruments | IC GATE DRVR LOW-SIDE 8DIP | 98% | View |
Submit your RFQ for TC4428MJA and get a quote within 24 hours.
