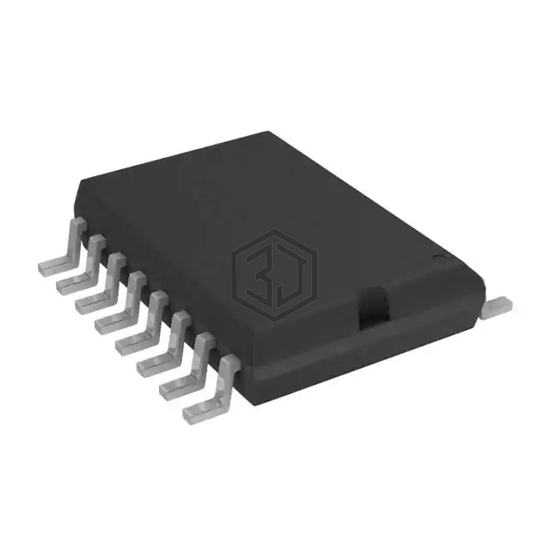

IC GATE DRVR LOW-SIDE 16SOIC
TC4425AVOE is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 8,197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 4.5A, 4.5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 12ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4424AVOE713 | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 100% | View |
| TC4425AVMF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 100% | View |
| MCP1405T-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 97% | View |
| MCP1403-E/SO | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 97% | View |
| MCP1405-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 97% | View |
| MCP1404-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 97% | View |
Submit your RFQ for TC4425AVOE and get a quote within 24 hours.
