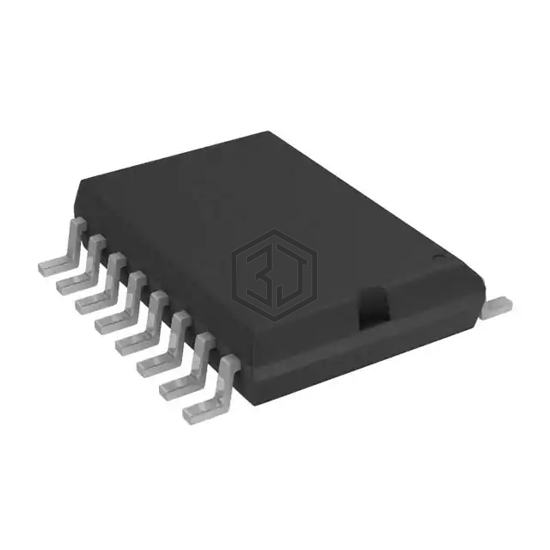

IC GATE DRVR LOW-SIDE 16SOIC
TC4423COE is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 16SOIC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 16-SOIC (0.295", 7.50mm Width).
In Stock: 73
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 3A, 3A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 23ns, 25ns |
| Operating Temperature | 0°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4425EMF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 100% | View |
| TC4425EOE | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 100% | View |
| MCP14E10T-E/MF | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 99% | View |
| UC3708DW | Texas Instruments | IC GATE DRVR LOW-SIDE 16SOIC | 98% | View |
| LM5110-3MX/NOPB | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 91% | View |
| UCC27201DG4 | Unitrode | IC DVR HIGH/LOW SIDE 3A 8SOIC | 80% | View |
Submit your RFQ for TC4423COE and get a quote within 24 hours.
