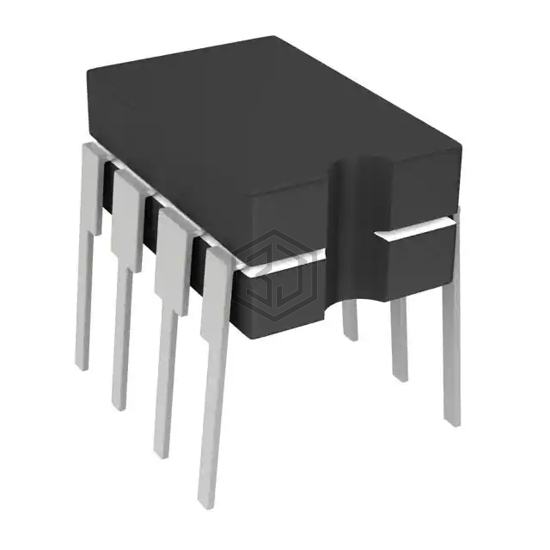

IC GATE DRVR LOW-SIDE 8CERDIP
TC4422MJA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8CERDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 8-CDIP (0.300", 7.62mm).
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 9A, 9A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 60ns, 60ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 8-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 8-CERDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4421MJA | Microchip Technology | IC GATE DRVR LOW-SIDE 8CERDIP | 100% | View |
| IXDD509PI | IXYS | IC GATE DRVR LOW-SIDE 8DIP | 89% | View |
| IXDN609CI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE TO220-5 | 88% | View |
| IXDI609PI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8DIP | 88% | View |
| IXDD609CI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE TO220-5 | 88% | View |
| IXDN614CI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE TO220-5 | 84% | View |
Submit your RFQ for TC4422MJA and get a quote within 24 hours.
