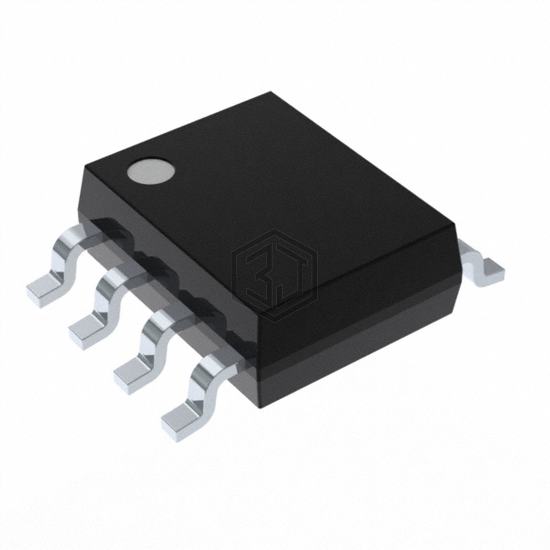

IC GATE DRVR LOW-SIDE 8SOIJ
TC4422ESM713 is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8SOIJ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 8-SOIC (0.209", 5.30mm Width).
In Stock: 2,968
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 9A, 9A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 60ns, 60ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.209", 5.30mm Width) |
| Supplier Device Package | 8-SOIJ |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4421EMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 100% | View |
| IXDN509D1 | IXYS | IC GATE DRVR LOW-SIDE 6DFN | 89% | View |
| IXDN609SIATR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 88% | View |
| IXDN609YI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE TO263-5 | 88% | View |
| IXDD609YI | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE TO263 | 88% | View |
| IXDI609SITR | IXYS Integrated Circuits Division | IC GATE DRVR LOW-SIDE 8SOIC | 88% | View |
Submit your RFQ for TC4422ESM713 and get a quote within 24 hours.
