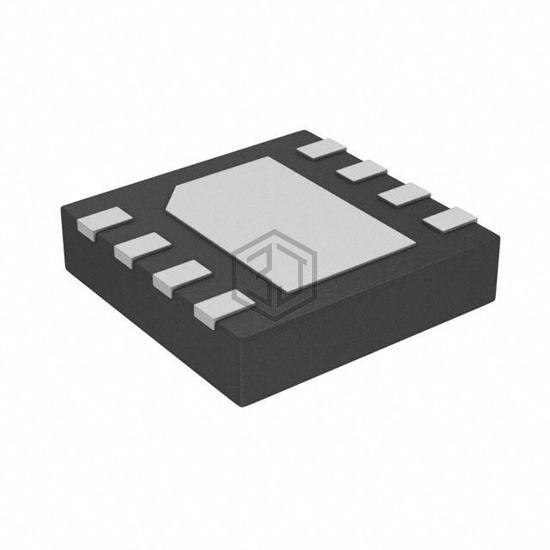

IC GATE DRVR LOW-SIDE 8DFN
TC429EMF713 is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8DFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 7V ~ 18V, package / case 8-VDFN Exposed Pad.
In Stock: 3,826
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 7V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 6A, 6A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 23ns, 25ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3) |
TC429EMF713 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC4420VOA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 93% | View |
| TC4420VMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 93% | View |
| TC4420EMF713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8DFN | 93% | View |
| MIC4420YMM | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 86% | View |
| MCP14A0601-E/SN | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 84% | View |
| MCP14A0601-E/MS | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 84% | View |
