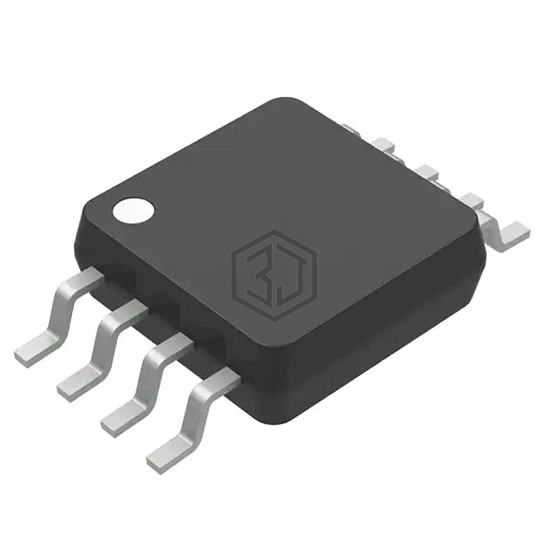

IC GATE DRVR LOW-SIDE 8MSOP
TC1428CUA is a PMIC - Gate Drivers manufactured by Microchip Technology. IC GATE DRVR LOW-SIDE 8MSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), voltage - supply 4.5V ~ 16V, package / case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width).
In Stock: 8,883
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 16V |
| Logic Voltage - VIL, VIH | 0.8V, 3V |
| Current - Peak Output (Source, Sink) | 1.2A, 1.2A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 35ns, 25ns |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-MSOP |
TC1428CUA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC1426COA | Microchip Technology | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
| TC1426CUA | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 100% | View |
| TC1428CUA713 | Microchip Technology | IC GATE DRVR LOW-SIDE 8MSOP | 100% | View |
| TC4467COE713 | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 81% | View |
| MIC4467ZWM | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 80% | View |
| MIC4468ZWM | Microchip Technology | IC GATE DRVR LOW-SIDE 16SOIC | 80% | View |
Submit your RFQ for TC1428CUA and get a quote within 24 hours.
