CURRENT MODE PWMS, HIGH-RELIABIL

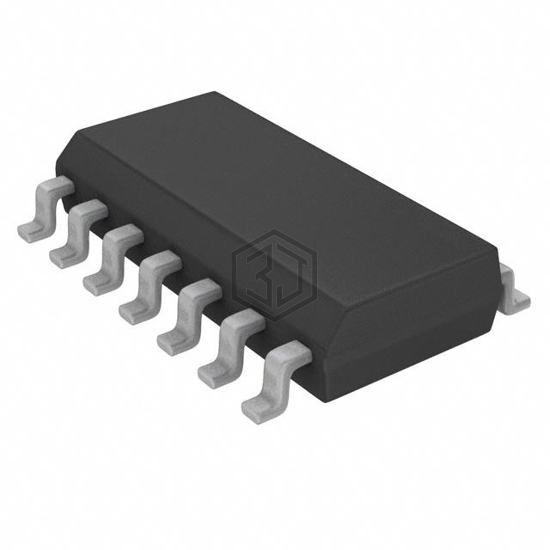

SG2843D is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. CURRENT MODE PWMS, HIGH-RELIABIL. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 30V, package / case 14-SOIC (0.154", 3.90mm Width).
In Stock: 5,895
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 30V |
| Frequency - Switching | 100Hz ~ 500kHz |
| Duty Cycle (Max) | 95% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | - |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SG2843D-TR | Microchip Technology | 0, HIGH-RELIABILITY ISOLATED SWI | 100% | View |
| SG2843DM-TR | Microchip Technology | 0, HIGH-RELIABILITY ISOLATED SWI | 100% | View |
| SG1843L | Microchip Technology | CURRENT MODE PWMS, HIGH-RELIABIL | 100% | View |
| SG1843L-883B | Microchip Technology | CURRENT MODE PWMS, HIGH-RELIABIL | 100% | View |
| SG1843L-DESC | Microchip Technology | CURRENT MODE PWMS, HIGH-RELIABIL | 100% | View |
| SG1843L-TR | Microchip Technology | CURRENT MODE PWMS, HIGH-RELIABIL | 100% | View |
Submit your RFQ for SG2843D and get a quote within 24 hours.
