IC REG CTRLR BUCK/FLYBACK 18SOIC

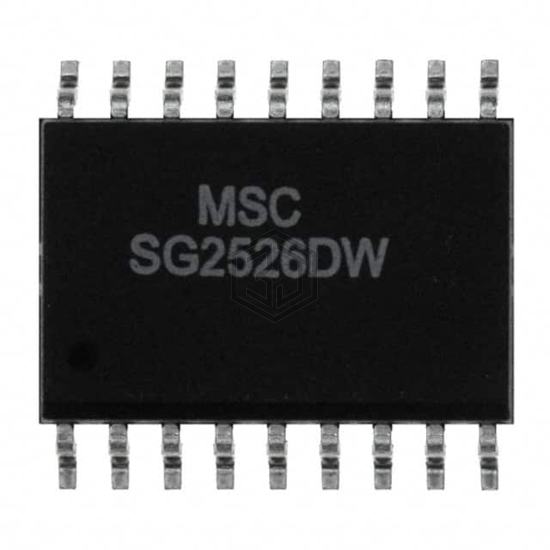

SG2526DW is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR BUCK/FLYBACK 18SOIC. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8V ~ 35V, package / case 18-SOIC (0.295", 7.50mm Width).
In Stock: 2,042
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Flyback |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Frequency - Switching | 1Hz ~ 350kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Enable, Frequency Control, Reset, Soft Start |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOIC |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SG2526BDW | Microchip Technology | IC REG CTRLR BUCK/FLYBACK 18SOIC | 100% | View |
| SG2526BDW-TR | Microchip Technology | 0, HIGH-RELIABILITY ISOLATED SWI | 100% | View |
| SG1526BL | Microchip Technology | VOLTAGE MODE PWMS, HIGH-RELIABIL | 100% | View |
| SG1526BL-883B | Microchip Technology | VOLTAGE MODE PWMS, HIGH-RELIABIL | 100% | View |
Submit your RFQ for SG2526DW and get a quote within 24 hours.
