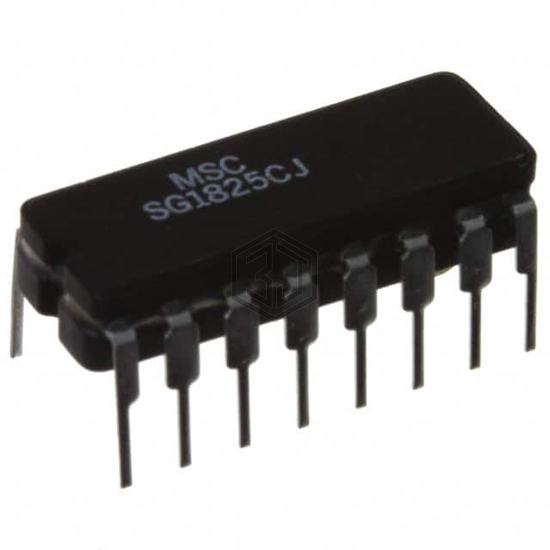

IC REG CTRLR BUCK/FLYBACK 16DIP
SG1825CJ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR BUCK/FLYBACK 16DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), voltage - supply (vcc/vdd) 10V ~ 30V, supplier device package 16-CDIP.
In Stock: 3,453
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | Transistor Driver |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Flyback |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 30V |
| Frequency - Switching | 4kHz ~ 1.5MHz |
| Duty Cycle (Max) | 85% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, Ramp, Soft Start |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | - |
| Supplier Device Package | 16-CDIP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SG1825CJ-DESC | Microchip Technology | IC REG CTRLR BUCK/FLYBACK 16DIP | 100% | View |
| SG1825CJ-883B | Microchip Technology | IC REG CTRLR BUCK/FLYBACK 16DIP | 100% | View |
Submit your RFQ for SG1825CJ and get a quote within 24 hours.
