IC REG CTRLR BUCK/FLYBACK 18DIP

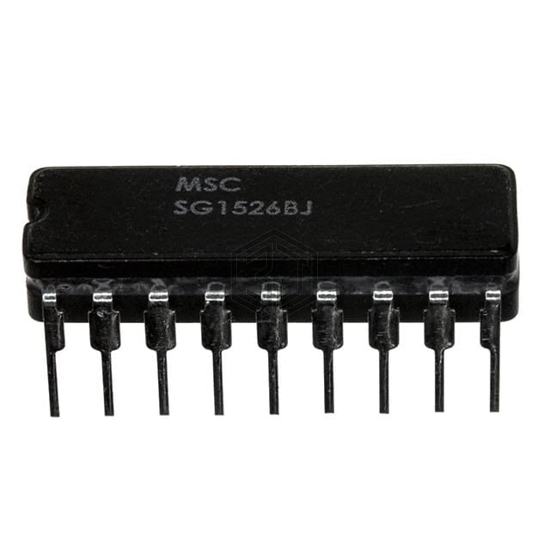

SG1526BJ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Microchip Technology. IC REG CTRLR BUCK/FLYBACK 18DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8V ~ 35V, package / case 18-CDIP (0.300", 7.62mm).
In Stock: 8,801
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Type | Transistor Driver |
| Function | Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Flyback |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Frequency - Switching | 1Hz ~ 500kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Dead Time Control, Enable, Frequency Control, Reset, Soft Start |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-CDIP |
SG1526BJ is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SG1526BJ-883B | Microchip Technology | IC REG CTRLR BUCK/FLYBACK 18JDIP | 100% | View |
| SG1526BJ-DESC | Microchip Technology | IC REG CTRLR BUCK/FLYBACK 18JDIP | 100% | View |
| SG1526J-883B | Microchip Technology | IC REG CTRLR BUCK/FLYBACK 18JDIP | 100% | View |
| SG1526J | Microchip Technology | IC REG CTRLR BUCK/FLYBACK 18DIP | 100% | View |
Submit your RFQ for SG1526BJ and get a quote within 24 hours.
